Snímač barometrického tlaku, klasifikace: Přídavná deska for MS5637-02BA03, pro použití s: Zásuvka mikroBUS Barometer 5

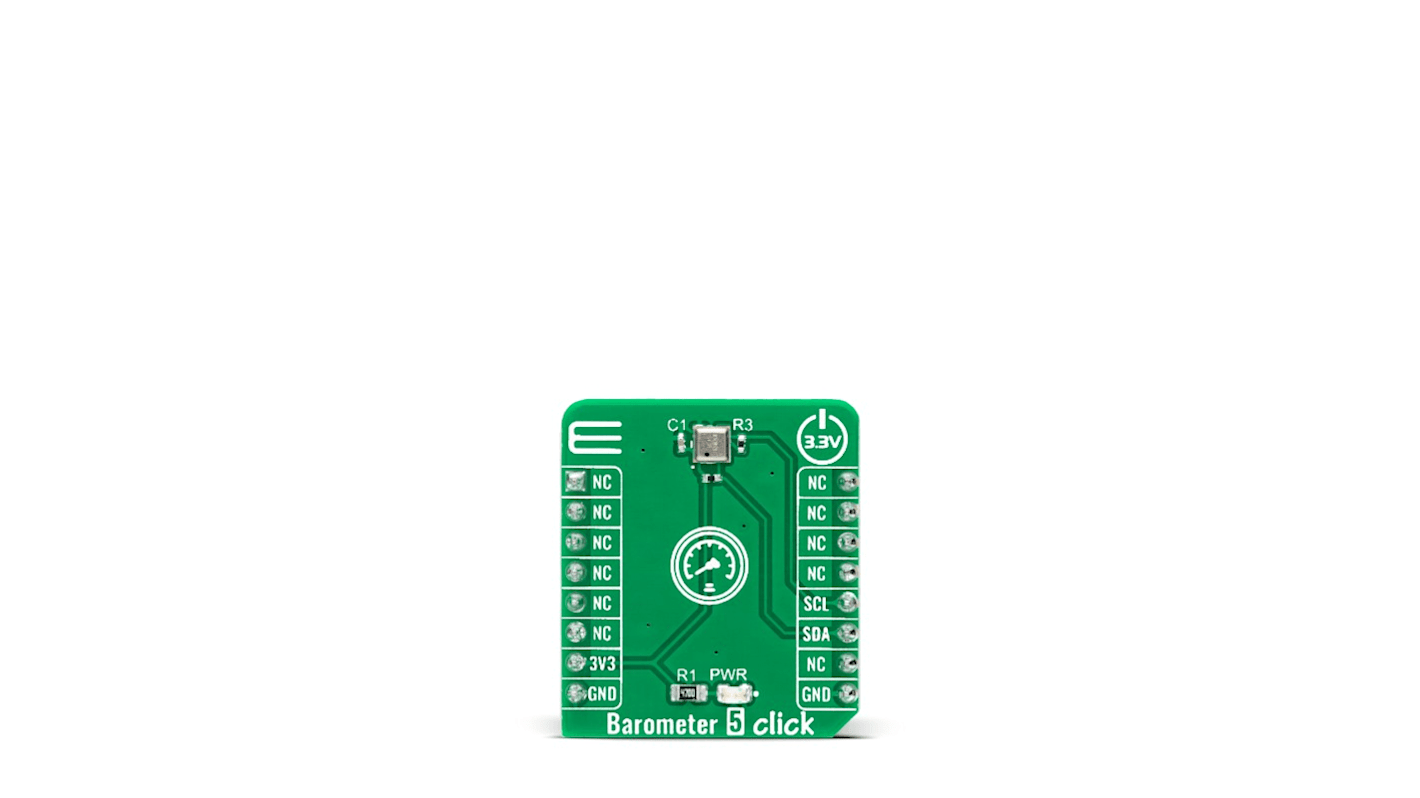

The The MikroElektronika's Barometer 5 Click is a compact add on board used to measure air pressure in a specific environment. This board features the MS5637-02BA03, a high accuracy low voltage barometric and temperature sensor from TE Connectivity Measurement Specialties. The MS5637-02BA03 includes a high linearity pressure sensor and an ultra low power 24 bit ADC with internal factory calibrated coefficients, providing a precise digital 24 bit pressure and temperature value, and different operation modes allowing the user to optimize for conversion speed and current consumption. It comes with a configurable host interface that supports I2C serial communication and measures pressure in a range from 300mbar up to 1.2bar with an accuracy of ±2mbar over a wide operating temperature range. This Click board is suited for various pressure based applications, especially when low power consumption is required.

Nízká spotřeba energie
High resolution and precision
Integrovaný snímač teploty
Teplotní stabilita
Konstantní přesnost v širokém rozsahu teplot
Measure altitude of 13cm
